The V-MOD is a modular and cost-effective HVAC coil maintenance tool that helps improve indoor air quality. The lamps destroy contaminants in the HVAC system including molds and bacteria and maintains the system to virtually original specifications making it an extremely versatile UV-C system. The system delivers better energy savings through improved system efficiency. This results from increased heat transfer in terms of net cooling and heating capacities and improves airflow.
Benefits:
- Doubles as a “side access” fixturing system in addition to its traditional “built-up” bank arrangement.
- Maintains AHU capacity to optimal operating conditions with near original equipment capacities.
- Lowers energy costs for most systems.
- Reduces costly maintenance and cleaning programs.
- With short payback periods, the V-MOD has one of the lowest ownership costs in the industry.
- Improves indoor air quality by destroying surface microbes including cold, flu, and other viruses.
- UV has proven effective on many infectious bacteria.
- Produces no ozone, gases, or other noxious fumes – will not harm building occupants, equipment, or furnishings.

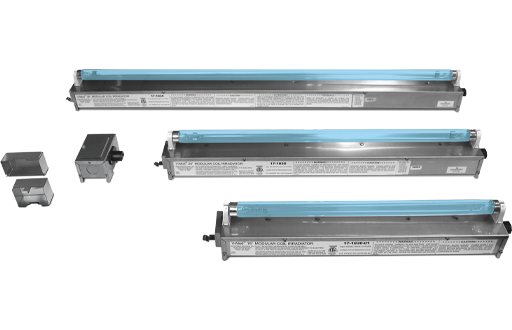

UVC Lamp and fixture are factory assembled and tested. They consist of a housing, power source, lamp sockets, and a UV lamp. All components are constructed to withstand typical HVAC environments. They are UL/C-UL Listed under category Code ABQK (Accessories, Air Duct Mounted), UL Standards: 153, 1598, and 1995.
Housing is constructed of type 304 stainless steel and is equipped with both male and female power plugs–one type at each to facilitate simple fixture to fixture plugin for A/C power. Fixtures may be used as built-up or as side access. Each fixture incorporates all components into one integral assembly that maximizes serviceability. Fixtures are designed to be mounted anywhere in an HVAC system.
The power Source is an electronic, high frequency, rapid-type with overload protection. It’s available in 120V and 240V and is designed to maximize radiance and reliability at UL/C-UL Listed temperatures of 55 135° F. It includes exclusive RF and EMI suppression. Sockets are medium bi-pin, single click safety, twist-lock type. They are constructed of a UV-C-resistant polycarbonate.
UV Lamps are a normal-output, hot cathode, T8 diameter, medium bi-pin type that produces UVGI of 254 nm. Each lamp produces the specified output at 500 fpm and an air temperature of 55-135° F.
Independent Testing: ALTRU-V systems have been independently tested to verify conformance to UL/C-UL Listed under category Code ABQK (Accessories, Air Duct Mounted), UL Standards: 153, 1598, and 1995.
