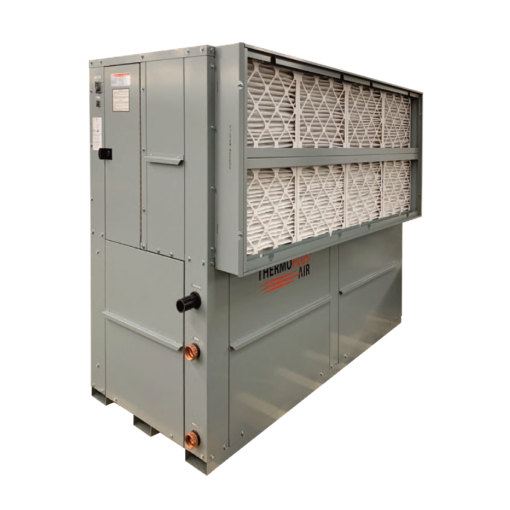

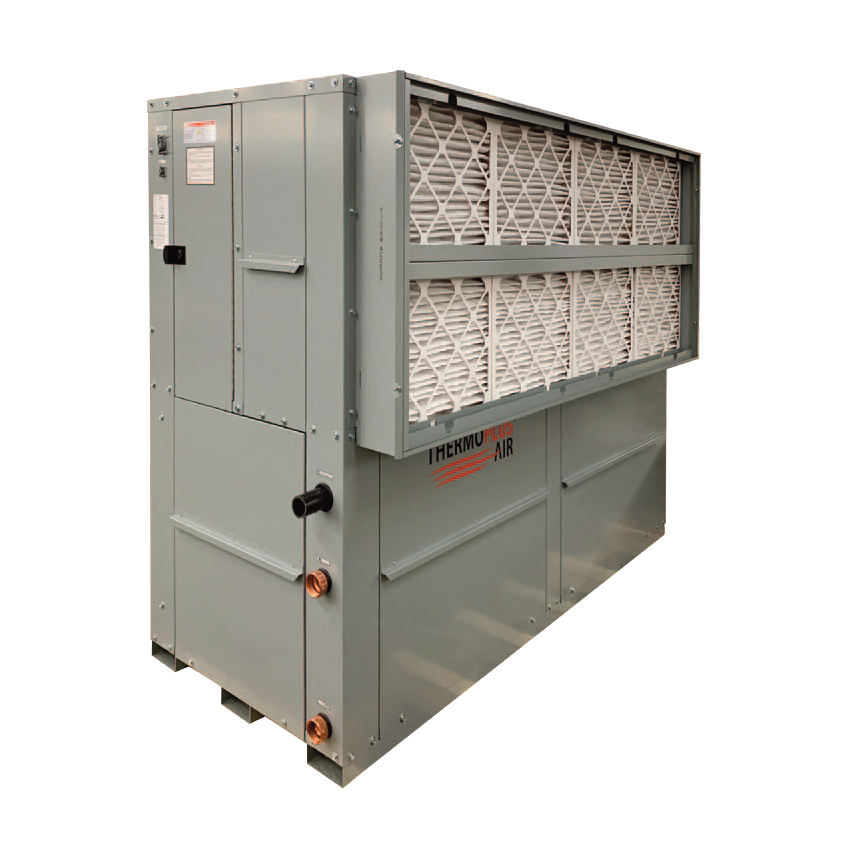

Horizontal/Vertical – 4 to 80 Tons
Features R410A scroll compressor(s) separated from air stream and are designed for commercial applications (office buildings, schools, hotels, etc…).
Standard Features
- Available Horizontal or Vertical
- Single or double wall / 1’’ or 2’’ insulation fiber glass or foamed
- R410A digital scroll compressor (1st Circuit)
- Modulating Hot gas reheat coil
- Backward inclined EC Plenum fan
- DDC Controls w/BACnet MSTP
- Pre-painted cabinet on all sizes
Optional Features
- Various supply and discharge configurations
- 300 PSI water valve (Stdr 150PSI)
- Overflow switch, Water flow Switch, Extended range
- Electric Heater W/SCR (On/Off or Modulating)
- Coil Options (HWC/Economizer/Steam coil)
- Coil Coating (Epoxy fins, copper fins or
- Aqua Aero corrosion coating)
- Backward inclined EC Plenum fan
- Non-fused disconnect, Compressor sound blanket
- 2” MERV 11, 13 & 4’’ MERV 14, 15 filters
- White-Grey pre-painted galvanized steel on sizes 180 and above
- 4-year extended compressor warranty
