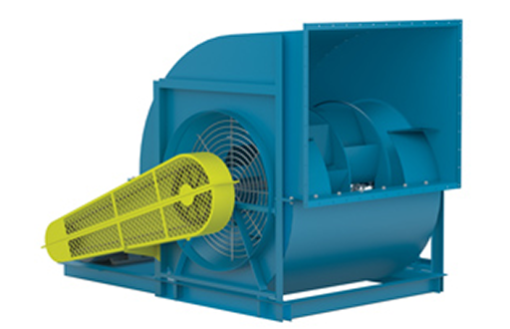

BAE-DW: Airfoil Centrifugal Fan, DWDI
The BAE-DW Centrifugal Fan is designed to handle large volumes of relatively clean air as required in heating, ventilating, and air conditioning systems and much industrial air supply and exhaust applications.
The BAE-DW is constructed with a staggered airfoil wheel for improved sound quality and higher efficiency ratings. The airfoil wheel is continuously welded and statically and dynamically balanced on precision electronic balancers to a Balance Quality Grade G6.3 per ANSI/AMCA 204 or better. All housings are reinforced with rigid bracing to increase structural integrity.
Sizes (wheel diameters)
12.25 to 98.25 inches (315 mm to 2,500 mm)
Performance
Airflow to 419,500 CFM (712,700 m3/hour)
Static pressure to 14 inches w.g. (3,480 Pa)
BAF-DW: Airfoil Centrifugal Fan, DWDI
The BAF-DW Centrifugal Fan is designed to handle large volumes of relatively clean air as required in heating, ventilating, and air conditioning systems, as well as many industrial air supply and exhaust applications.
Sizes (wheel diameters)
12.25 to 89 inches (311 mm to 2,265 mm)
Performance
Airflow to 344,300 CFM (584,965 m3/hour)
Static pressure to 14 inches w.g. (3,480 Pa)
BC-DW: Flat-Blade Backward Inclined Centrifugal Fan, DWDI
The BC-DW Centrifugal Fan is designed to handle large volumes of relatively clean air as required in heating, ventilating, and air conditioning systems as well as many industrial air supply and exhaust applications.
Wheels are constructed of steel using flat, single thickness blades that are solid welded to the rim and backplate. The inlet-side rim is designed as a proper companion for the inlet cone. All wheels are statically and dynamically balanced to grade BV3 per AMCA 204 and provide smooth operation prior to being assembled in the fan, followed by final balance of the entire rotating assembly. All BC-DW fan housings are continuously welded and reinforced with rigid bracing to increase structural integrity.
Sizes (wheel diameters)
12.25 to 89 inches (331 mm to 2,260 mm)
Performance
Airflow to 344,300 CFM (584,965 m3/hour)
Static pressure to 14 inches w.g. (3,480 Pa)
NFC-DW: Forward Curved Centrifugal Fan, DWDI
The NFC-DW is designed to handle large volumes of relatively clean air at low speeds.
Sizes (wheel diameters)
12.25 to 49 inches (311 mm to 1,244 mm)
Performance
Airflow to 96,500 CFM (164,000 m3/hour)
Static pressure to 4 inches w.g. (990 Pa)
FC-DW: Forward Curved Centrifugal Fan, DWDI
The FC-DW is used for OEM applications in oven and air handling designs.
Sizes (wheel diameters)
12.25 to 49 inches (315 mm to 1,245 mm)
Performance
Airflow to 96,500 CFM (164,000 m3/hour)
Static pressure to 4 inches w.g. (990 Pa)
