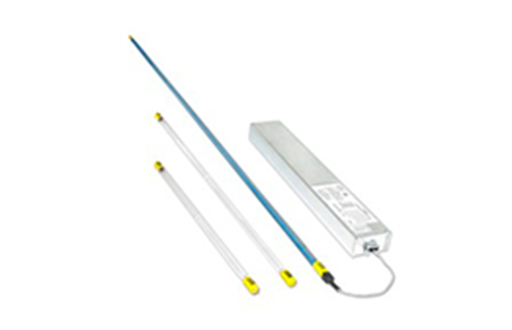

Designed for small commercial HVAC airstream disinfection, the V-MAX™ product line consists of lamp modules with nominal lengths of 21 in., 33 in. and 61 in. V-MAX™ provides effective airstream disinfection, resulting in improved indoor air quality.
Benefits:
- Ease of installation in small HVAC systems
- V-MAX is ETL listed to UL standards and complies with requirements for the UL ABQK category for commercial air duct mounted accessories
Specs:
- 21″ V-MAX: 120 VAC.45 A 240 VAC .20 A33″ V-MAX: 120 VAC .75 A 240 VAC .40 A61″ V-MAX: 120 VAC 1.30 A 240 VAC .60 A
- Rated for temperature 30F to 150 F (4C to 57C)RH: up to 95% non condensing
- Regulatory approvals: ETL listed to UL/Canadian standards:
- UL 1598/CSA 22.2 250
- UL 1995/CSA 22.2 236
- UL 153/CSA 22.2 12 for category ABQK (Air Duct Mounted Accessories)
